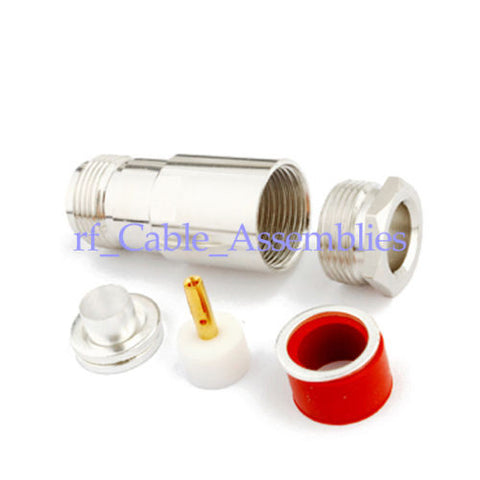

N-Type Female Jack Clamp LMR300 50-5 cable straight RF Coaxial Connector adapter
N01-SJL30-41BS00Model: N01-SJL30-41BS00
N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.
Offers a few styles of 75 ohm impedance versions of N connectors. They are not matable with the 50 ohm connectors.
The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.
| Product Series: | N |
| Product Type: |
Cable mount |
| Application: | Clamp |
| Body Plating: | Nickelplated |
| Body Termination: | Clamp |
| Cable Type: | 50-5 cable ,LMR300 |
| Connector Body Style: |
Straight |
| Connector Material: | Brass |
| Contact Plating: | Nickel |
| Contact Termination: | Solder |
| Gender: | Jack |
| Impedance: | 50 Ohm |
Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution. Please contact us.
